JDVM - One VM to Code Them All¶

Less configuration, more creation

The JDVM is a powerful development environment designed specifically for Java Developers working on Windows or Linux. This Virtual Machine is based on Ubuntu, providing a familiar Linux environment that integrates seamlessly with Windows through Docker Desktop or Linux through Docker Engine.

The main advantage of the JDVM is its time-saving nature. Developers no longer need to spend valuable time manually setting up their development environment or installing the necessary tools. Everything you need - such as OpenJDK (via Eclipse Temurin), IDE, build tools, Version Control System, Docker, Kubernetes and so on - is pre-configured and ready to go right out of the box.

With the JDVM, developers can focus on writing code and delivering high-quality software, instead of worrying about installation issues or environment configuration. It's an ideal solution for anyone looking for a streamlined, efficient, and hassle-free Java development setup.

It requires 2 dependencies on Windows:

• WSL version 2 (Windows Subsystem for Linux) - lets you install a Linux distribution and use Linux applications, utilities, and Bash command-line tools directly on Windows, unmodified, without the overhead of a traditional virtual machine or dualboot setup. Check quickly if you have it with command: wsl --version in CMD/PowerShell
• Docker Desktop - lets you build, share, and run containerized applications. It provides a straightforward GUI (Graphical User Interface) that lets you manage your containers, applications, and images directly from your machine

It requires only 1 dependency on Linux:

• Docker Engine - lets you build, share, and run containerized applications. It does not provide any GUI, management is performed via CLI

JDVM image can be pulled from DockerHub: hub.docker.com/r/jdheim/jdvm

Container from the image can be started with a batch script (more in the next section):

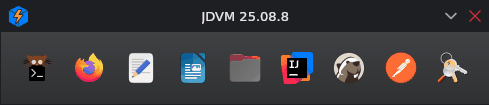

After the container is started, you'll see the dock with the applications having a graphical interface:

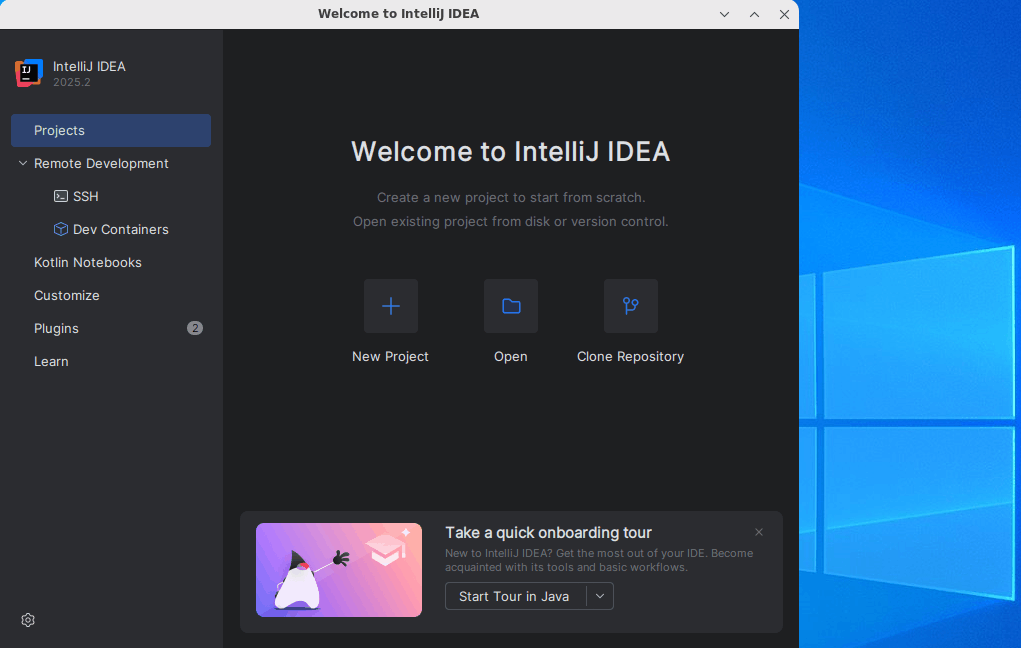

For example, IntelliJ IDEA (not installed by default, you can install it manually):

All applications having graphical interface (even the ones not included in the dock, e.g. engrampa archive manager) open as a separate window which you can move freely on your Windows / Linux:

🛠️ First Setup and Start¶

1. Installation¶

Please follow the linked official documentation and install all required dependencies mentioned above.

2. Setup (in case of Windows)¶

You can place a .wslconfig file in C:\Users\%USERNAME% where you can configure the amount of memory or the number of logical processors you want to assign to Docker Desktop.

[wsl2]
memory=10GB
processors=4

[experimental]
autoMemoryReclaim=dropcache

Full documentation: learn.microsoft.com/en-us/windows/wsl/wsl-config#wslconfig

3. Start¶

1. Start Docker Desktop (in case of Windows).
2. After that start JDVM container.
3. Enjoy!

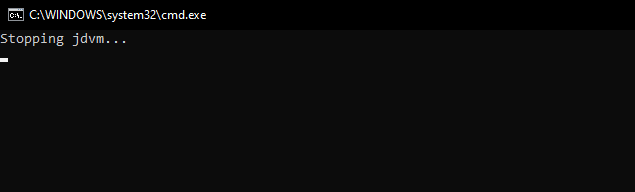

See an example batch script which starts or restarts JDVM: restart.bat or bash script: restart.sh. Change the value of IMAGE_VERSION variable if there is a newer version available.

Batch scripts can be executed on Windows in CMD/PowerShell or with a double mouse click. Bash scripts can be executed on Linux in the terminal.

4. Quit¶

Windows¶

Quit Docker Desktop to quit JDVM.

Linux¶

Run in terminal:

docker container stop jdvm; docker container rm jdvm

💾 Persisting changes¶

By default, Docker containers do not persist changes. You'll need to use volumes to enable persistence.

In restart.bat/restart-with-wayland.bat/restart.sh I defined 5 volumes:

• home under /home/dev - home directory of JDVM user
• containerd under /var/lib/containerd - stores Containerd data, such as images and filesystem snapshots
• docker under /var/lib/docker - stores Docker Engine data, such as volumes, networks, and container configuration
• /mnt/shared - a shared place between JDVM and C:\Users\%USERNAME%\shared on Windows or /home/${USER}/shared on Linux
• /mnt/wslg a shared socket bindings required to display applications and enable audio output from JDVM on Windows or Linux
  • On Linux /tmp/.X11-unix for display and /run/user/${UID}/pulse/native for audio needs to be mounted explicitly instead

🚀 How to add a shortcut to the app launcher Launchee?¶

You can add a shortcut to the app launcher by editing /home/dev/.config/launchee/launchee.yml file. Here is the example:

# USER CONFIGURATION FILE.
# USE THIS FILE TO OVERRIDE OR EXTEND THE DEFAULT SETTINGS MANAGED BY THE CONTAINER.
# HOW TO ADD NEW SHORTCUTS TO LAUNCHEE? CHECK /etc/launchee/launchee.yml

shortcuts:
  - name: "IntelliJ IDEA"
    icon: "/home/dev/apps/intellij-idea/bin/idea.svg"
    command: "idea"

IntelliJ IDEA, by default, uses X11. If you want to make it use Wayland, set:

    command: "idea"
    commandArgs: "-Dawt.toolkit.name=WLToolkit"

The configuration managed by the container is located in /etc/launchee/launchee.yml.

🔄 How to update Docker Desktop/WSL?¶

Update Docker Desktop¶

1. Go to Docker Desktop settings
2. Click on "Software updates"
3. Click on "Check for updates"
4. Install updates

Update WSL¶

1. Quit Docker Desktop
2. Open PowerShell
3. Check version: wsl --version
4. Close WSL: wsl --shutdown
5. Update WSL: wsl --update
   • Optionally, you can update WSL to a pre-release version (less stable): wsl --update --pre-release

🐛 Known Issues¶

Wayland: App icons do not load (all show the Tux icon)¶

If you use restart-with-wayland.bat, you may notice that all applications using wayland display the Tux icon instead of their proper icons.

The fix is to:

1. Download this repository as a ZIP (Code -> Download ZIP)
2. Unpack the contents of the wayland-icon-fix folder to \\wsl$\docker-desktop\usr\share using Windows Explorer:
   • wayland-icon-fix/applications having *.desktop files go to \\wsl$\docker-desktop\usr\share\applications
   • wayland-icon-fix/icons/apps having *.png icons go to \\wsl$\docker-desktop\usr\share\icons\apps
3. Restart Docker Desktop to see the changes

If you install your own application, you'll need to create a matching *.desktop file:

1. In a terminal run tail "/mnt/wslg/weston.log" -f | grep "appId:"
2. Launch your application and check the appId shown.
3. The *.desktop file created in applications directory must have the exact same filename as the appId.
4. The StartupWMClass field inside the *.desktop file must also match the appId.
5. Place your application's icon into the icons/apps directory
6. Restart Docker Desktop to see the changes

Minimal jetbrains-idea.desktop file example:

[Desktop Entry]
Name=IntelliJ IDEA
Exec=idea
Type=Application
Icon=/usr/share/icons/apps/jetbrains-idea.png
StartupWMClass=jetbrains-idea

Wayland: App GUI freezes after Windows sleep/resume¶

After resuming Windows from sleep, GUI applications may appear frozen. To fix this, right-click the application in the taskbar and select Close.

Launchee will automatically restart after a few seconds.

This issue is specific to GTK on Wayland (it does not occur on X11). For more details, see: KWin Wiki: Restarting

VHDX disk grows over time¶

This issue has been resolved in Docker Desktop 4.34 with the compaction feature, but disabled after 4.59.

Deleting data in Docker Desktop (e.g. images, volumes) does not cause the size of VHDX (Virtual Hard Disk) to decrease. Once the VHDX grows it will remain that size, or grow larger as the amount of data increases.

You can check the size of your Docker Desktop VHDX file under path: %LOCALAPPDATA%\Docker\wsl\disk (%LOCALAPPDATA% is Windows environment variable which resolves to C:\Users\%USERNAME%\AppData\Local).

If you want to recover some of the disk space on Windows that is being consumed by the VHDX, you can shrink the VHDX.

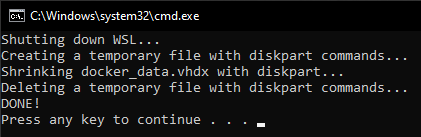

See example batch script which automates the shrinking of VHDX via diskpart Windows utility: shrink-vhdx.bat. Change the value of vhdxFile and vhdxPath variables if the name/path of your VHDX is different.

Firefox can crash if shared memory size is too low¶

To prevent crashes from happening when running Firefox inside JDVM, the size of the shared memory located at /dev/shm must be increased. The issue is documented here.

By default, the size in Docker containers is 64MB, which is not enough. It is recommended to use a size of 2GB. This value is arbitrary, but known to work well. Setting the size of /dev/shm can be done by adding the --shm-size 2g parameter to the docker run command. It is already added to restart.bat/restart.sh.

Missing overlayfs Storage Driver¶

To check the Storage Driver inside JDVM run command: docker system info --format "{{.Driver}}". If it is not overlayfs, it means you're missing --mount source=containerd,target=/var/lib/containerd and --mount source=docker,target=/var/lib/docker parameters in docker run command. It is already added to restart.bat/restart.sh.

Thanks to this, Docker can use overlayfs as a Storage Driver, otherwise it falls back to vfs. Using vfs may cause issues when creating a k3s kubernetes cluster with k3d.

📜 Useful Scripts¶

On JDVM there are some useful scripts which you can use (more coming soon!).

📚 Useful Docs¶

• Accessing application in a Windows browser
• Certificate Setup
• Verifying Provenance and SBOM Attestations

🏗️ How to build image locally?¶

Clone or download as a ZIP this repository.

Install the latest JDK on Windows / Linux: adoptium.net/temurin/releases

Windows: Use Maven wrapper: mvnw.cmd and type in CMD/PowerShell:

.\mvnw.cmd clean install -Pbuild-image

Linux: Use Maven wrapper: mvnw and type in Terminal:

./mvnw clean install -Pbuild-image

If you want to remove builder cache after the image is built, use -Pbuild-image,remove-buildx-cache Maven profiles or open Docker Desktop, go to Volumes tab and remove buildx_buildkit_jdvm-builder0_state volume manually. You can also execute command:

docker volume rm "buildx_buildkit_jdvm-builder0_state"

Older releases are removed from DockerHub. If you want to use an older release for whatever reason, you need to build it yourself. In the Releases tab you can find zip with the source code.
